Mine Blast Attenuating Seat

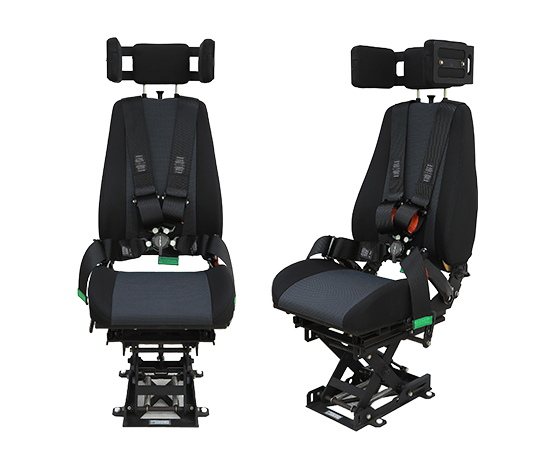

DRIVER SEAT,
Co-DRIVER SEAT
CONTACT US
-

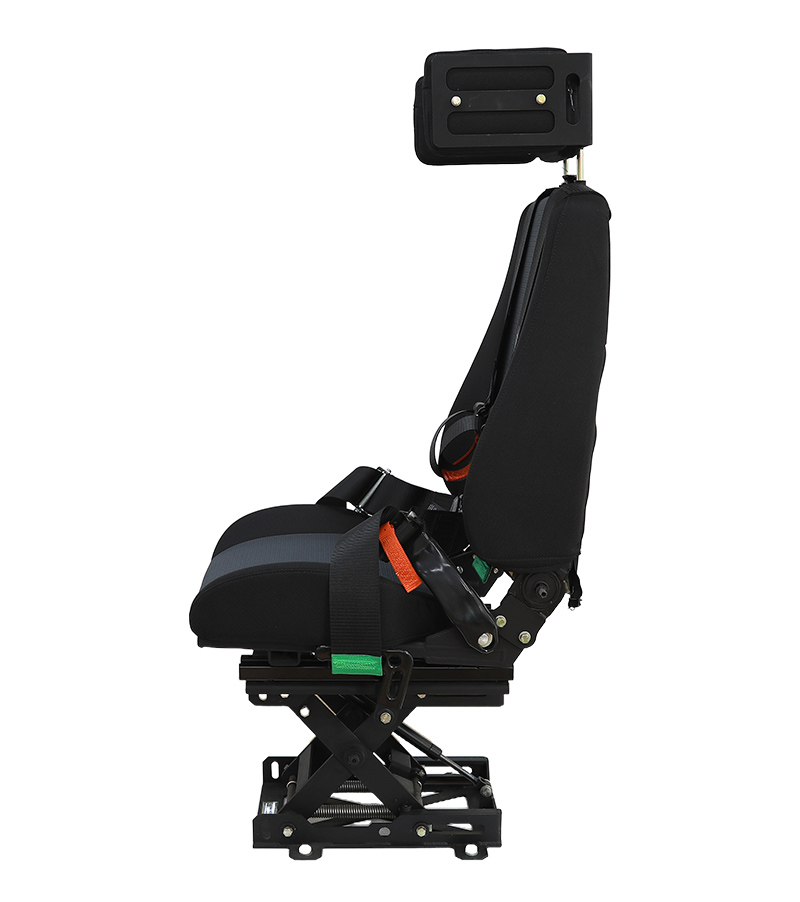

Seat
· Adjustment Seat: Front 110.0 mm / Rear : 110.0 mm · Height Adjustment: 5-Step. 167mm · Reclining Back · Fabric cover: flame retardant material · Seat Belt : 4-Point Seat Belt · Mounting Options: Floor
Specification -
Seat Size
1) 857.0 X 633.1 X 485.0 mm (Min)
2) 1,023.0 X 633.1 X 485.0 mm (Max) -
Weight
39.5kg -
Safety
1) FMVSS 302 2) ECE No.14 M3 PASS 3) Vibration (MIL-STD-810G) PASS 4) STANAG 4569 ED.2, AEP 55 Vol.2 5) DRI ≤ 17.7(PASS)
Standard -
Application
Vehicle
K806(WAV)
K808(WAV)
Wheeled Command
30mm

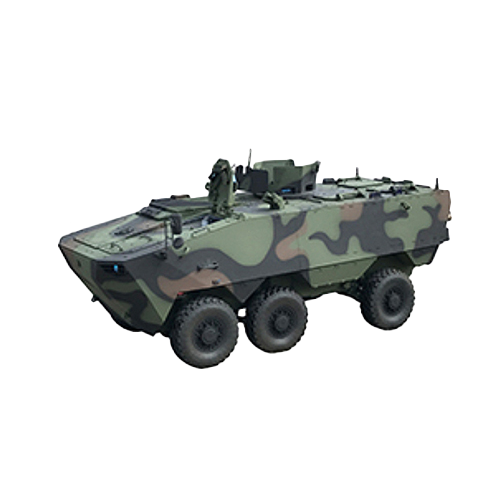

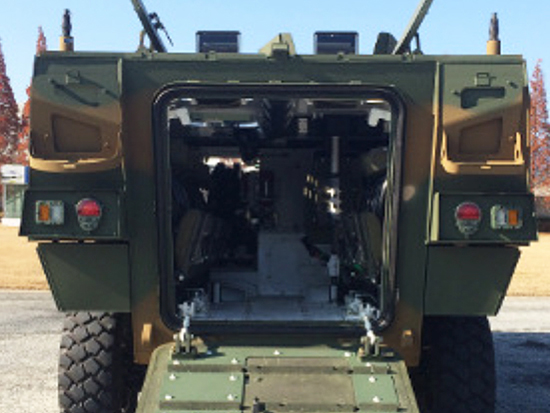

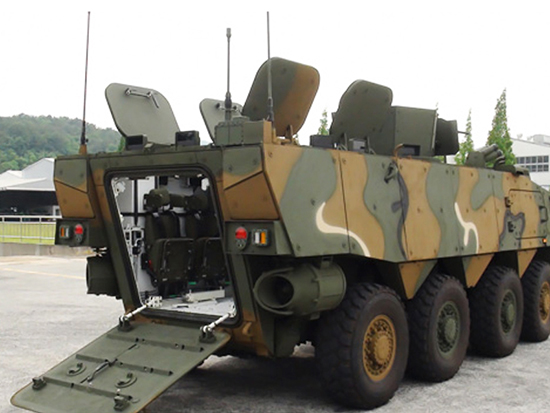

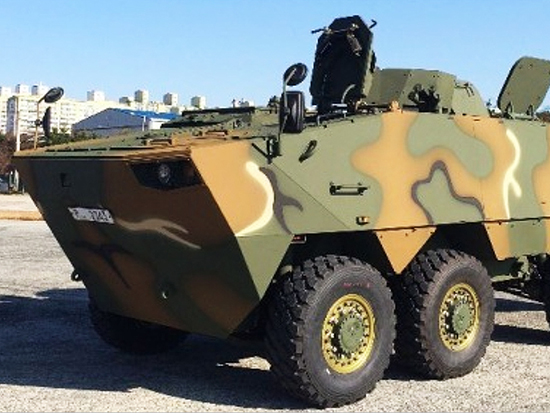

6x6 WAV(K806, Armored Personnel Carrier)
The 6×6 wheeled armored vehicle is a basic vehicle designed for mobile striking and protecting important facilities during rear area operations. It consists of a 420 ps diesel engine from Hyundai Motors , a 7-speed transmission and a 2-speed secondary transmission. The MINE BLAST ATTENUATING SEAT for crew protection is built-in, and it has been developed with an ergonomic design considering the crew operation and the expandability of the belonging vehicle, and is currently in mass production.

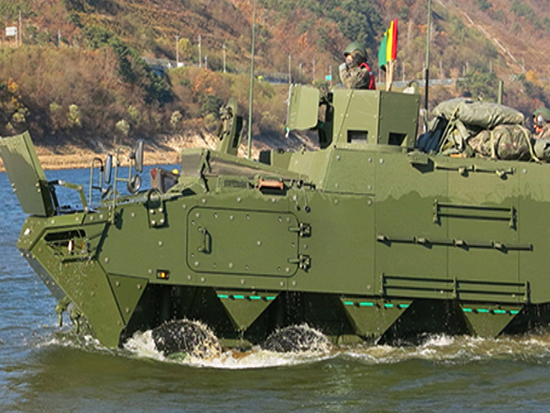

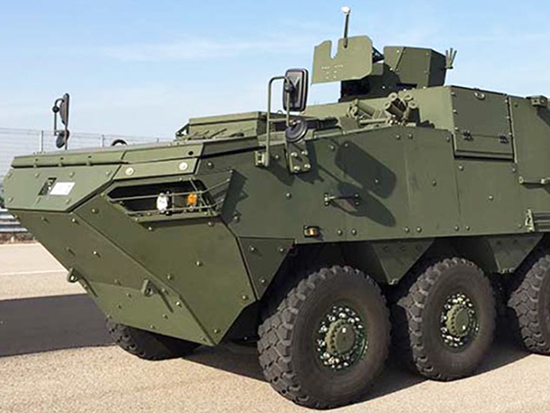

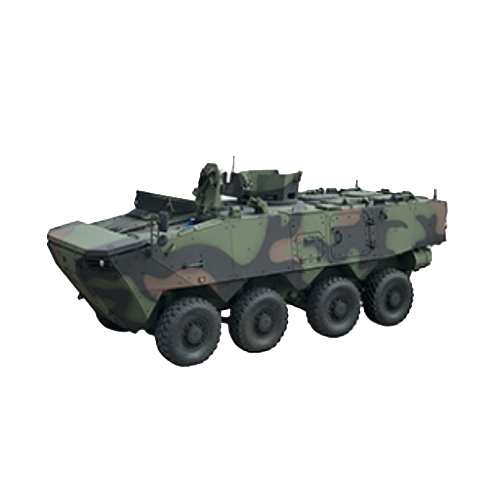

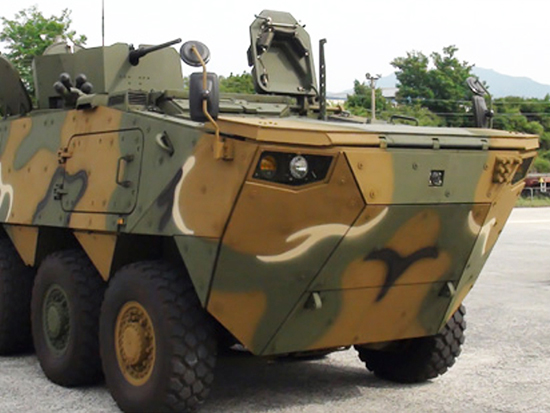

8x8 WAV(K808, Infantry Combat Vehicle)
The 8x8 Wheeled Armored Vehicle is an infantry combat vehicle that is fitted with a 420 ps diesel engine developed by Hyundai Motors, 7-speed transmission and 2-mode secondary transmission. Capable of moving on both land and water and built-in MINE BLAST ATTENUATING SEAT also it has been engineered to maximize crew operability with its ergonomic design and scalability to family vehicles.

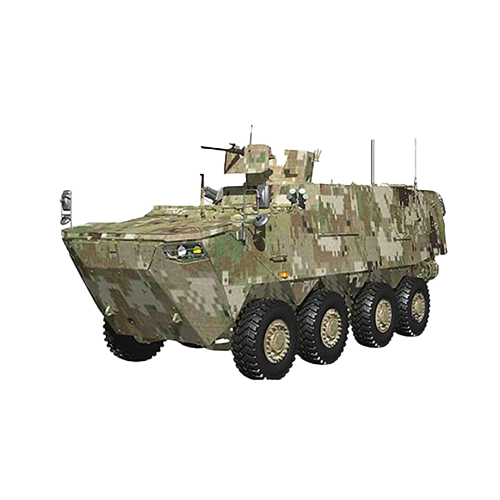

Wheeled Command Post Vehicle
Land armored vehicles for command and fire control of artillery units

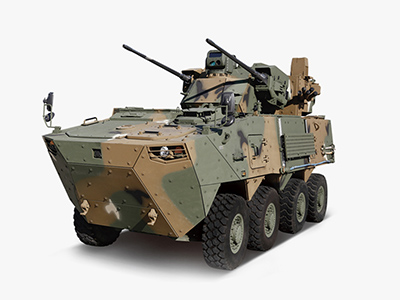

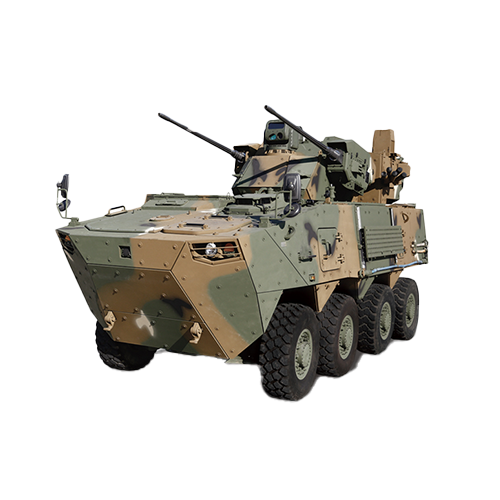

30mm Anti-Aircraft Gun Wheeled Vehicles
Air Defense C2A System, Local Air Defense Radar, Synchronized Operation with Airfield Anti-Aircraft Control System Loaded with Electron Optical Targeting Systems (EOTS) and a Visual Targeting System enabling Automatic Tracking and Self-Targeting Capabilities Application of wheeled platform enables mobile and localized support for troops

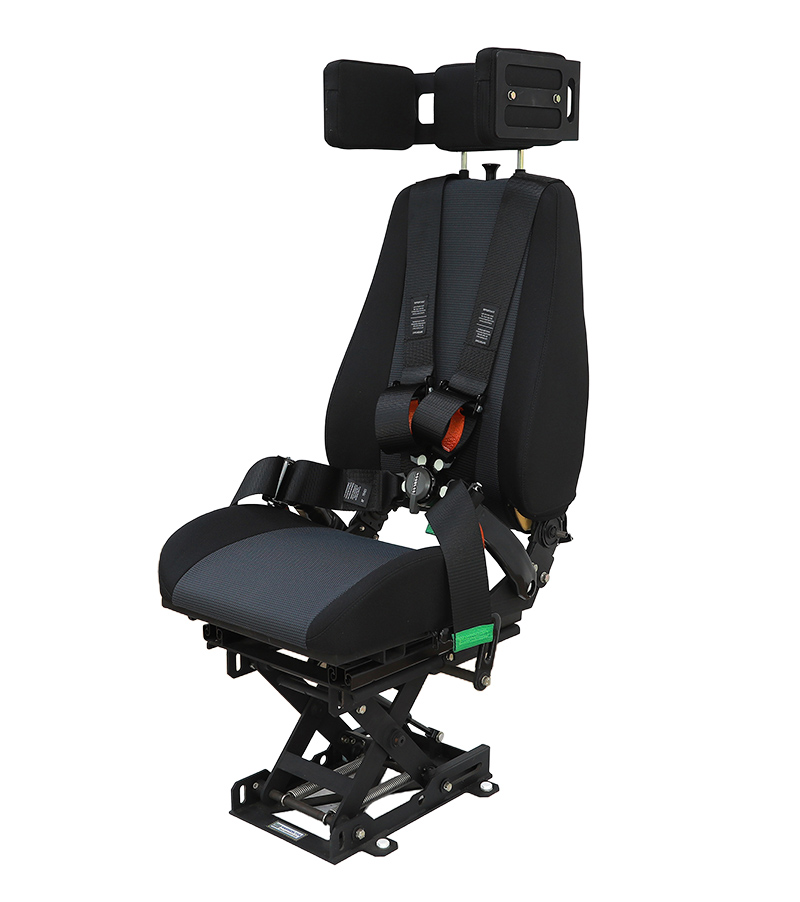

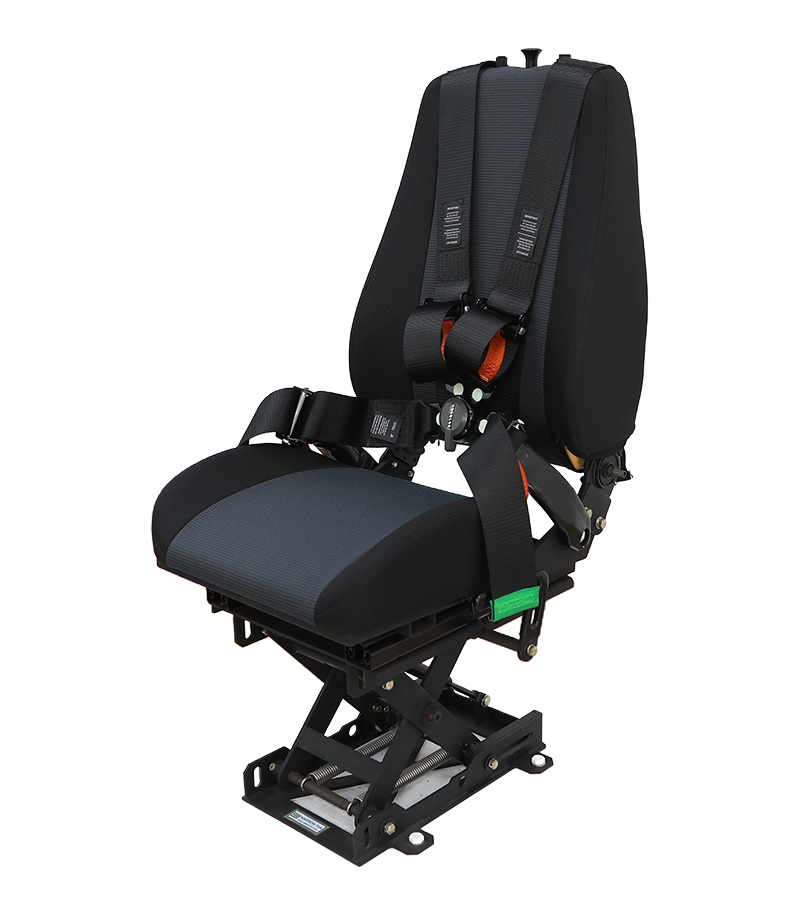

SEAT SPECIFICATION
-
Mounting Options : Floor
-
Reclining Back
-
Seat Belt : 4 Point Seat Belt
-
Head Rest (Optional) : Height adjustment
